Best Price for Decoration Gear Damper Small Gear Rotary Damper For Car Ashtray supply to Italy Wholesale

Small gear rotary damper for car ashtray. ABD small gear rotary dampers are used to dampen drives, control speed, and many other applications. ABD silicone oil viscous dampers are available in either fixed rate or adjustable models. The damping direction of the plastic small gear rotary dampers with continuous rotation can be clockwise, counter clockwise, or in both directions. In car ashtray small gear damper with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The gear rotary damping moment is determined by the viscosity of the fluid and the size of the orifice or gap. ABD gear dampers are easy to install and totally maintenance free.



Welcome to purchase high quality and precise small gear rotary damper from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. If you are interested in any of car ashtray small gear dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

Gear Rotary Damper For Car Ashtray

Specifications



Applied Torque(T)
(gf.cm )
250 25±6gf.cm
500 50±10gf.cm
101 100±20gf.cm
151 150±30gf.cm
201 200±50gf.cm
251 250±75gf.cm

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min(Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4. Operating temperature: -10~50

5. Storage temperature:-30~80

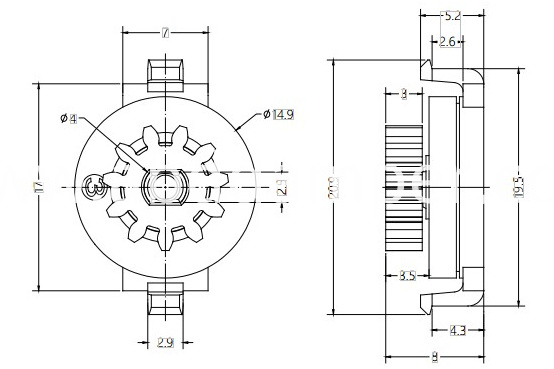

Drawings



Gear Damper Drawing For Car Ashtray

 Gear Damper For Car AshtrayDamper For Car Ashtray

The size of mounting hole should be adjusted properly to eliminate clearance.

Materials




3 Shaft POM
2 Cover PC
1 Shell PC
NO. Description Material



Gear specification
Tooth profile Full depth tooth
Pressure angle 20°
Module G1:0.5 G2:1.0 G3:0.8
Number of teeth G1:14  G2:10  G3:11
P.C.D.(mm) G1:Ø7  G2:Ø10   G3:Ø6.6

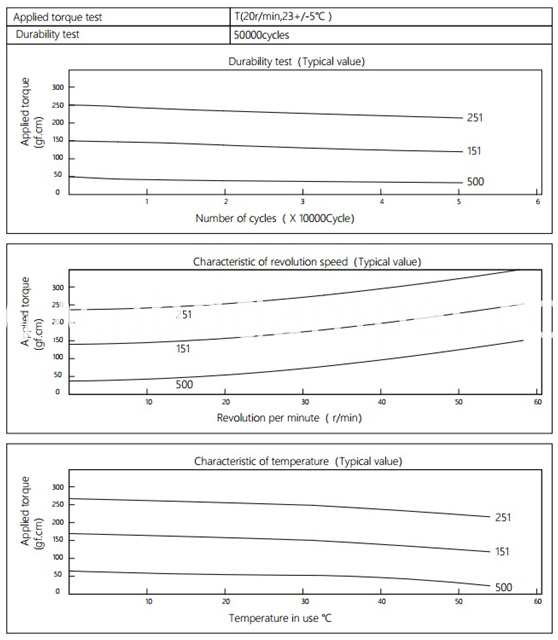

Damper Characteristics



Gear Rotary Damper Characteristics For Car Ashtray


Applied torque: (T)

Test Temperature: 23+/-5℃

Rotating speed:20r/min

Durability test Method: Clockwise 360 °, 360 ° anti-clockwise

Rotating speed:20r/min

Test Frequency: 1cycle/min

Test Temperature: 23±5

Durability test cycle: 50000cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

Applications

Electrical products,household appliances,automobile interior decoration,furniture equipment,office equipment,rotating mechanism and many other cover plates, etc.



Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
