"Based on domestic market and expand abroad business" is our improvement strategy for Rotary Damper Application On Toilet Seat,Vane Damper Application On Toilet Seat,Damper Application On Toilet Seat. "Making the Products and solutions of Large Quality" may be the everlasting aim of our organization. We make unremitting efforts to recognize the intention of "We Will Always Keep in Pace with all the Time".

China Gold Supplier for for Soft Down Damper Rotary Damper Vane Damper Application On Toilet Seat export to United States Wholesale

The internal structural design is vane. Soft close toilet seat damper is to provide an opposition to the movement. Soft close toilet seat rotary damper can make the movement softly, safely and silently. This toilet seat vane damper application is for toilet seat. The vane damper used in both side of the lid, and keep the lid drop softly. It is safe and silently. The damping direction of the vane dampers with continuous rotation can be clockwise, counter clockwise, or in both directions. In vane dampers with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The damping moment is determined by the viscosity of the fluid and the size of the orifice or gap. The damping characteristics can be customized by changing the viscosity of the silicon fluid or by changing the structure of the rotor and stator. ABD toilet seat vane dampers are easy to install. Once installed, they are increasing equipment life and reducing maintenance expenses.



Welcome to purchase high quality and precise toilet seat rotary dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. If you are interested in any of toilet seat rotary dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

Rotary Damper Application On Toilet Seat

Specifications

Applied Torque(T)
(kgf.cm )
 153  15kgf.cm
203 20kgf.cm
253 25kgf.cm
303 30kgf.cm
353 35kgf.cm
403 40kgf.cm


NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2.The Standard of completion closing:the angle is 0° between Shaft A and Shaft B.

3. It is closing position to assemble the shaft into the housing.

4. Max. cycle rate: 3 cycles/min(Clockwise110 °, 110 ° anti-clockwise for 1 cycle)

5.Operating temperature:0~40

6.Storage temperature:-10~60


Drawings

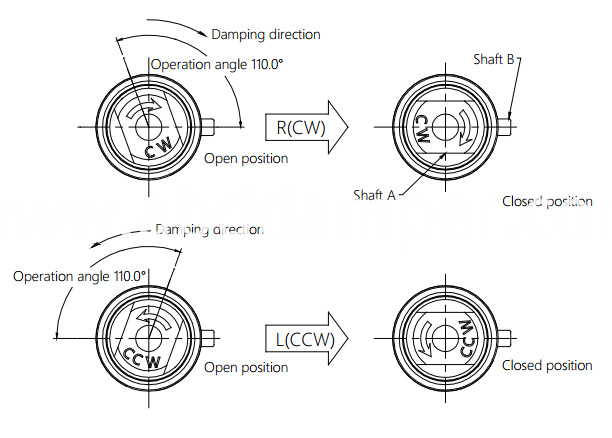

Vane Damper Application On Toilet Seat

Vane Damper Drawing Application On Toilet Seat


Damper Application On Toilet Seat


Materials


4 Vane POM
3 Shaft ZDC
2 Cap PA66
1  Housing ZDC
NO. Description  Material



Damper Characteristics


Damper Characteristics Application On Toilet Seat



Soft closing time test: Measure the closing time from angle 70 to 0.

Rated Torque (T).

Test Temperature: 23±2.

Durability test:

Test Method: From the closing position to opening position, push back to 70°,soft close from 70° to 0°.

Rated Torque (T).

Operation Angle: 0°~110°.

Test Temperature: 23±2.

Durability test cycle: 50,000 cycles. The result of product test )>2s.



Applications


Medical equipment, trash cans, storage boxes,toilet seat, household appliances, dishwashers, washing machines, small to midsize cover plate slow down, etc.


Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
