Excellent quality for for Excavator Disk Damper Rotary Damper Disk Damper For Glove Boxes supply to South Korea Wholesale

The direction for damping torque of ABD DQ47A - B disk rotary dampers with a steel body is either clockwise, anticlockwise or bi-directional. ABD disk dampers provide energy absorption and rotational deceleration. Disk damper for glove boxes soft close, infinite angle rotation. The direction for damping torque of ABD disk rotary dampers with a steel body is bi-directional. Our disk dampers are the perfect solution for a wide range of applications, from office equipment, and furniture equipment to commercial equipment to. ABD Disk dampers are designed to control and smooth out the opening and closing of lids, and doors. This smooth deceleration provides and anti-slam function. When rotary damper disk damper use in the scanner, it will keep the scanner close silently and slowly. ABD disk dampers are crucial for many products which require safety, high quality and durability solutions. ABD scanner disk dampers are easy to install.once installed, they are increasing equipment life and reducing maintenance expenses.



Welcome to purchase high quality and precise glove boxes disk dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. Our products with advantages of excellent quality, competitive price, and best service are your first choice.If you are interested in any of glove boxes rotary dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful b

Rotary Damper For Glove Boxes

Specifications



Part No. Applied Torque(T) (Kgf.cm ) A B C D E F G H R V
DQ47A 502-203 5~20Kgf.cm 65 56 8 4.5 47 42.8 1.2 10.3 4.5 10
DQ51A 103-303 10~30Kgf.cm 72 62 10 5.5 51 47.1 1.2 10.3 5.5 13
DQ57A 203-503 20~50Kgf.cm 79 68 10 5.5 57 52.4 1.6 10.3 5.5 13
DQ63A 403-703 40~70Kgf.cm 89 76 12.5 6.5 63 58.6 1.6 10.3 6.5 17
DQ70A 603-104 60~100Kgf.cm 95 82 12.5 6.5 70 65.4 1.6 10.3 6.5 17


NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:-30~80℃

Drawings



Damper Drawing For Glove Boxes

Disk Damper For Glove Boxes


The damper square hole coordinates with the rotation axis dimension tolerance.




Materials


3 Shaft  PA/POM
2 Cover SPFC
1 Shell SPFC
NO. Description Material

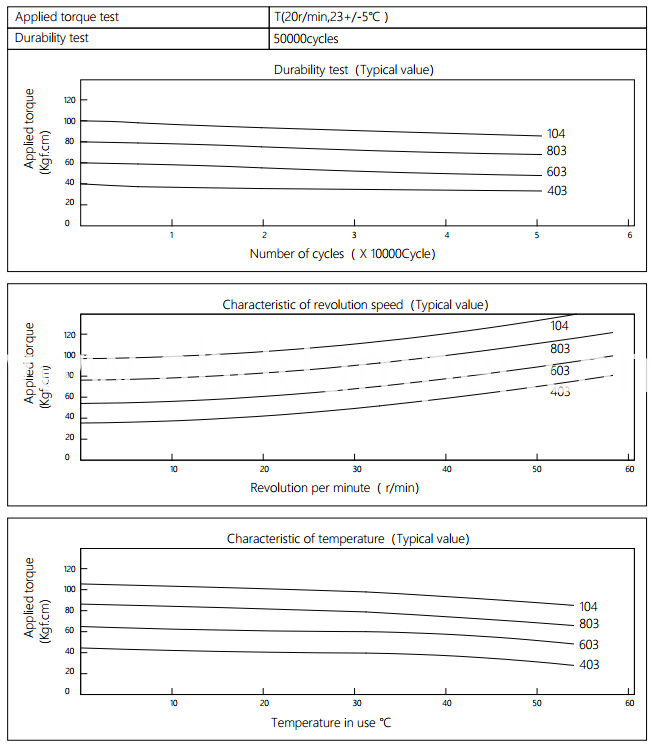

Damper Characteristics


Damper Charactteristiics For Glove Boxes


Applied torque: (T)

Test Temperature:23+/-5℃

Rotating speed:20r/min

Durability test Method:Clockwise 360 °, 360 °anti-clockwise

Rotating speed:20r/min

Test Frequency:(1cycle/min)

Test Temperature: 23±5℃

Durability test cycle: 50000 cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.



How to use the damper

1.Dampers may generate torque in both directions, clockwise, or counter-clockwise.

2.Please make sure that a shaft attached to a damper has a bearing, as the damper itself is not fitted with one.

3.please refer to the recommended dimensions below when creating a shaft for DQ47A-B. Not using the recommended shaft dimensions may cause the shaft to slip out.




Applications

Theater seats, auditorium seating, wall chairs, scanner, glove boxes, office equipment, furniture equipment, commercial equipment, auto seats, auto seat back plate, rotating mechanisms and many other cover plates, etc.



Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
