Hot sale good quality for Toilet Seat Damper Computer Conference Table Rotary Damper Barrel Damper export to United States Wholesale

Share to:
    Payment Type: T/T
    Incoterm: FOB
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 20 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

We have been commitment to supply the competitive price ,excellent products and solutions high-quality, at the same time as fast delivery for Computer Conference Table Damper,Computer Conference Table Rotary Damper,Computer Conference Table Barrel Damper. fax or telephone.

Hot sale good quality for Toilet Seat Damper Computer Conference Table  Rotary Damper Barrel Damper export to United States Wholesale

Computer conference table dampers are rotary dampers that mount at the hinge-point and are designed to fit into computer conference table. A typical application is computer conference table. The design of middle through hole is easy to install. The damping direction of the rotary dampers with continuous rotation can be uni-directional, bi-directional. In rotary dampers with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The damping moment is determined by the viscosity of the fluid and the size of the orifice or gap. The damping characteristics can be customized by changing the viscosity of the silicon fluid or by changing the structure of the rotor and stator. Our computer conference table barrel dampers can make the movement of structures soft, quiet and safe to mitigate the impact, avoid the damage, increase the mechanical life, reduce noise, and improve product quality.

Full inspection of all our products torque, guarantee the stability of the product torque. Our company has a leading R & D team in the peer, our product has several patents, ensuring a steady stream of new product development for the company. We pursue creating the value for you based on our high quality service, products and favorable prices. Feel free to contact us if you are interested in any of the ABD dampers and services.

Computer Conference Table Damper

Specifications

Applied Torque(T)
(gf.cm )
         301           300±70gf.cm
701 700±100gf.cm
102 700±100gf.cm











NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50

5.Storage temperature:  -30~80

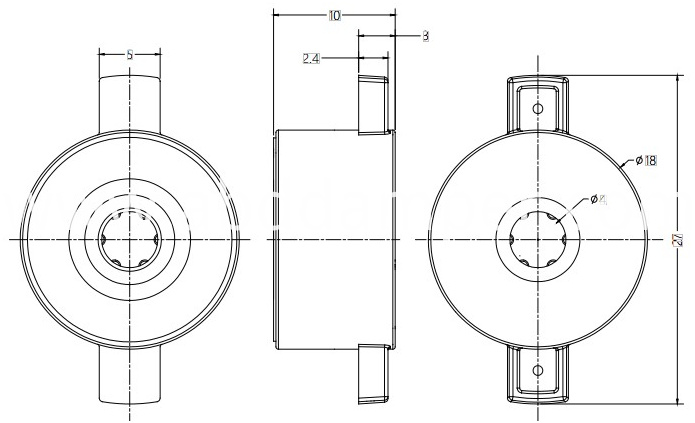

Drawings

Computer Conference Table Rotary Damper


Computer Conference Table Barrel Damper


Materials


3 Cover POM
2 Shaft PC
1 Shell PC
NO. Description  Material

Damper Characteristics


Car Video Screen Plastic Barrel Damper Characteristics




Applied torque: (T)

Test Temperature: 23+/-5℃

Rotating speed: 20r/min

Durability test Method:Clockwise 360 °, 360 ° anti-clockwise

Rotating speed:20r/min

Test Frequency: 1cycle/min

Test Temperature: 23±5

Durability test cycle: 50000cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.


Barrel Damper for Computer Conference Table


The damper circular hole coordinates with the rotation axis dimension tolerance.


Applications

Car video screen, computer conference table,keyboard, display flip,vending machine, middle-size and small-size cover plate slow bounce, middle-size and small-size cover plate soft close, etc.


Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
