OEM China High quality for Vane Damper Toilet Seat Cover Rotary Damper Vane Damper supply to South Korea Wholesale

Share to:
    Payment Type: T/T
    Incoterm: FOB
    Min. Order: 100 Piece/Pieces
    Delivery Time: 20 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

you should come to feel absolutely free to ship us your inquiry. We sincerely hope to ascertain win-win company relationships with you. for Toilet Seat Cover Rotary Damper,Toilet Seat Cover Vane Damper,Toilet Seat Cover Damper. We sincerely welcome you occur to visit us. Hope we now have very good cooperation from the potential.

OEM China High quality for Vane Damper Toilet Seat Cover Rotary Damper Vane Damper supply to South Korea Wholesale

The internal structural design is vane. Soft close toilet seat cover damper is to provide an opposition to the movement. Soft close toilet seat cover rotary damper can make the movement softly, safely and silently. This toilet seat vane damper application is for toilet seat. The vane damper used in both side of the lid, and keep the lid drop softly. It is safe and silently. The damping direction of the vane dampers with continuous rotation can be clockwise, counter clockwise, or in both directions. In vane dampers with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The damping moment is determined by the viscosity of the fluid and the size of the orifice or gap. The damping characteristics can be customized by changing the viscosity of the silicon fluid or by changing the structure of the rotor and stator. ABD toilet seat cover vane dampers are easy to install. Once installed, they are increasing equipment life and reducing maintenance expenses.



Welcome to purchase high quality and toilet seat cover rotary dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. Our products with advantages of excellent quality, competitive price, and best service are your first choice. If you have interest in our toilet seat cover vane dampers or require any further information, please do not hesitate to contact me.

Toilet Seat Cover Rotary Damper

Specifications

Applied Torque(T)
(kgf.cm )
   103     10kgf.cm
153 15kgf.cm
203 20kgf.cm
253 25kgf.cm
303 30kgf.cm

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2.The Standard of completion closing:the angle is 90° between Shaft A and Shaft B.

3.It is closing position to assemble the shaft into the housing.

4. Max. cycle rate: 3 cycles/min(Clockwise110 °, 110 ° anti-clockwise for 1 cycle)

5.Operating temperature:0~40

6.Storage temperature:-10~60

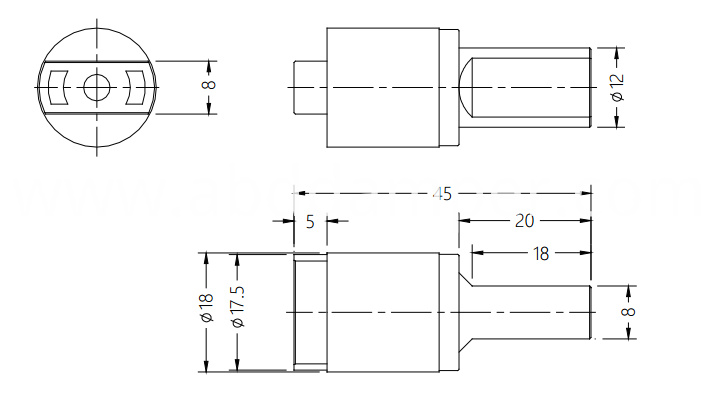

Drawings

Toilet Seat Cover Vane Damper



Toilet Seat Cover  Damper Drawing

Toilet Seat Cover  Damper


Materials

4 Vane POM
3 Shaft ZDC
2 Cap POM+GF
1  Housing POM+GF
NO. Description  Material

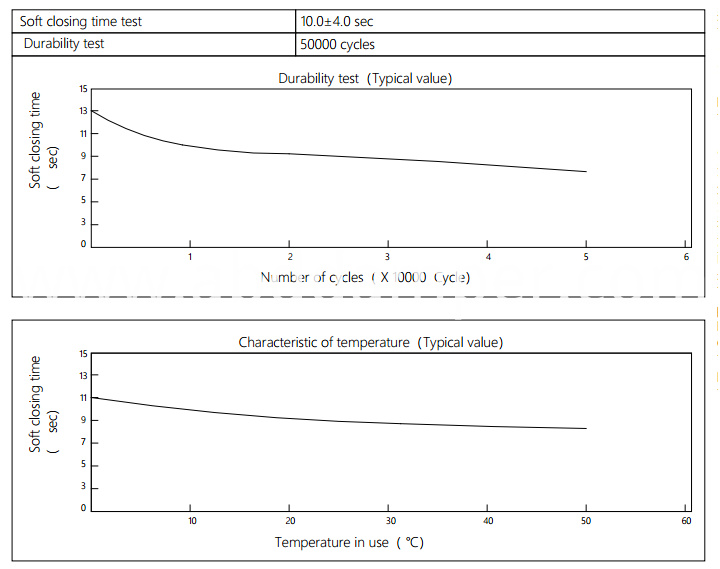

Damper Characteristics

 Toilet Seat Cover  Damper Characteristics



Soft closing time test: Measure the closing time from angle 70 to 0.
Rated Torque (T).
Test Temperature: 23±2℃.
Durability test:
Test Method: From the closing position to opening position, push back to 70°, soft close from 70° to 0° .
Rated Torque (T).
Operation Angle: 0°~110°.
Test Temperature: 23±2℃.
Durability test cycle: 50,000 cycles. The result of product test )>2s.

Applications


Medical equipment, trash cans, storage boxes,toilet seat, household appliances, dishwashers, washing machines, small to midsize cover plate slow down,etc.

Caution
1. Do not operate without sufficient mounting strength.
2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
