Wholesale Price for Flexible Shaft Coupling Roll Up Blinds Rotary Damper Shaft Damper supply to Spain Wholesale

Share to:
    Payment Type: T/T
    Incoterm: FOB
    Min. Order: 100 Piece/Pieces
    Delivery Time: 20 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

The key to our success is "Good Products Good quality, Reasonable Price and Efficient Service" for Roll Up Blinds Rotary Damper,Roll Up Blinds Shaft Damper,Roll Up Blinds Damper. Welcome to build long-term marriage with us. Finest Rate Forever High-quality in China.

Wholesale Price for Flexible Shaft Coupling Roll Up Blinds Rotary Damper Shaft Damper supply to Spain Wholesale

The damping torque direction of ABD roll up blinds is rotating on the right or the left. Roll up blind rotary damper can be installed directly in the pivot. When shaft damper is used in roll up blind, different connectors can be selected for the damper according to the type of aluminum pipe profile. Rotary damping functions as velocity control in order to roll up blind in accommodation. Our rotary damping is high-performance by separating clutch out from original one.When rotary damper shaft damper use in the roll up blind, it will keep the blind roll up silently and slowly. ABD roll up blind shaft dampers are easy to install. Once installed, they are increasing blind life and reducing maintenance expenses.



Welcome to purchase high quality and precise roll up blind rotary dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers.  We have been specialized in this field for many years. If you are interested in any of  roll up blind shaft dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

 DS13F



NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 100r/min

3. Max. circle rate: 10 cycle/min (Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50

5.Storage temperature:-30~80




Specifications



Applied Torque(T)
(gf.cm )
151 150±30gf.cm
251 250±50gf.cm
351 350±70gf.cm
451 450±90gf.cm

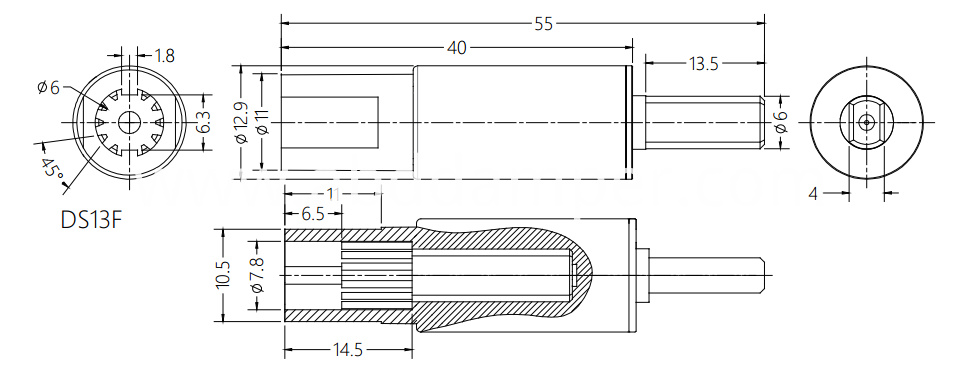

Drawings


Roll Up Blinds Shaft Damper Drawing

Roll Up Blinds Shaft Damper

Materials



3 Shaft POM
2 Cover PC+ABS
1 Shell PC+ABS
NO. Description Material


Joint specifications: G06A187~G06A310

Roll Up Blinds  Damper

After installing the unidirectional joint, the damper torque single direction output.
By adjusting the way of installation of one-way joint, the torque direction can be changed.


Damper Characteristics



Roll Up Blinds Damper Characteristics


Applied torque:(T)

Test Temperature: 23+/-5℃

Rotating speed:20r/min

Durability test Method:Clockwise 360 °, 360 ° anti-clockwise

Rotating speed:50r/min

Test Frequency:1cycle/min

Test Temperature: 23±5℃

Durability test cycle: 50000 cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.




Roll Up Blinds Rotary Damper

Roll Up Blinds Rotary Damper


Roll Up Blinds Shaft Damper


Roll Up Blinds Damper Joint

After installing the unidirectional joint, the damper torque single direction output. By adjusting the way of installation of one-way joint, the torque direction can be changed.






Applications

Invisible screensshade screens, insect screen and many other roll up blinds, etc.








Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.



About Us

Our Company

ABD Equipment Co., Ltd. focuses on lean manufacturing of precision components in molding, assembly and quality management. The main products we develop and design include precision motion hinges, damping components, motor gearbox drive components, lock bodies and stop mechanisms for motion control related products.

ABD's products are widely used in household appliances, electrical products, industrial manufacturing, furniture decoration, hutch defends equipment, public facilities, etc. Our products is conducive to performing structural movement in soft, silent and safe environment, mitigating impact load, avoiding strike damage, prolonging mechanical life, reducing noise disturbance, improving product quality and improve customer satisfaction.

Our products range from barrel damper, vane damper, stop damper, gear damper, disk damper, shaft damper, shock damper, damping gas spring. Feel free to contact us if you are interested in any of the ABD products and services.

Rotary Damper and Linear Damper


Our merchandise are broadly identified and trusted by end users and can satisfy continually developing economic and social requires for Roll Up Blinds Rotary Damper Shaft Damper. The product will supply to all over the world, such as: United Arab Emirates,Swaziland,Togo. Our Company has specialist engineers and technical staff to answer your questions about maintenance problems some common failure. Our product quality assurance price concessions any questions about the products You should feel free to contact us.
